SHENGCHENG Custom Four Season Bioclimatic Pergola Aluminium 3×4 m
What Is PERGO-FIT Aluminum Louver Pergola?
PERGO-FIT louvered pergola is a premium bioclimatic outdoor aluminum gazebo designed to extend your outdoor usable season all year round. Equipped with tilting double-layer aluminum louvers adjustable from 0° to max 135°, you can freely switch between full sun exposure, partial shade, and fully closed waterproof shelter within seconds.Whether it’s sunny, windy or sudden rainfall, this adjustable louver roof creates a flexible comfortable outdoor zone for residential and commercial use. The whole structure passes CE & SGS international certification, with 10-year quality warranty and zero daily maintenance.

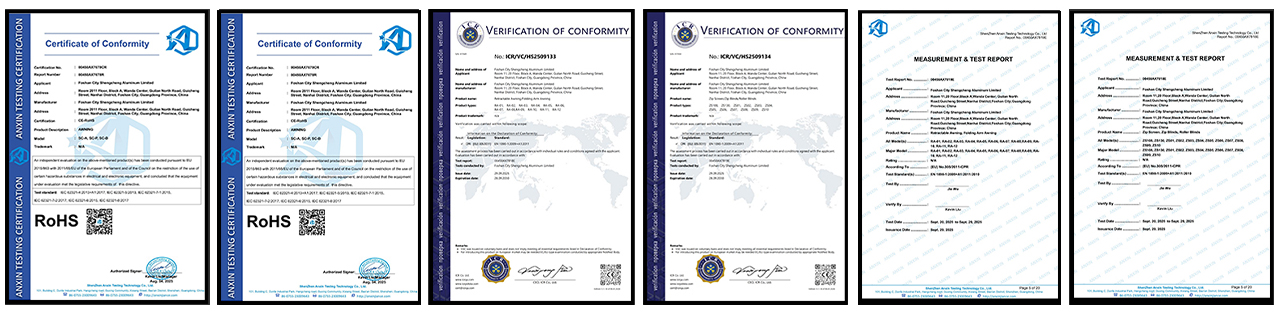

Certificate
Core Features of PERGO‑FIT Louver Pergola
1.Adjustable Tilting Louver Roof

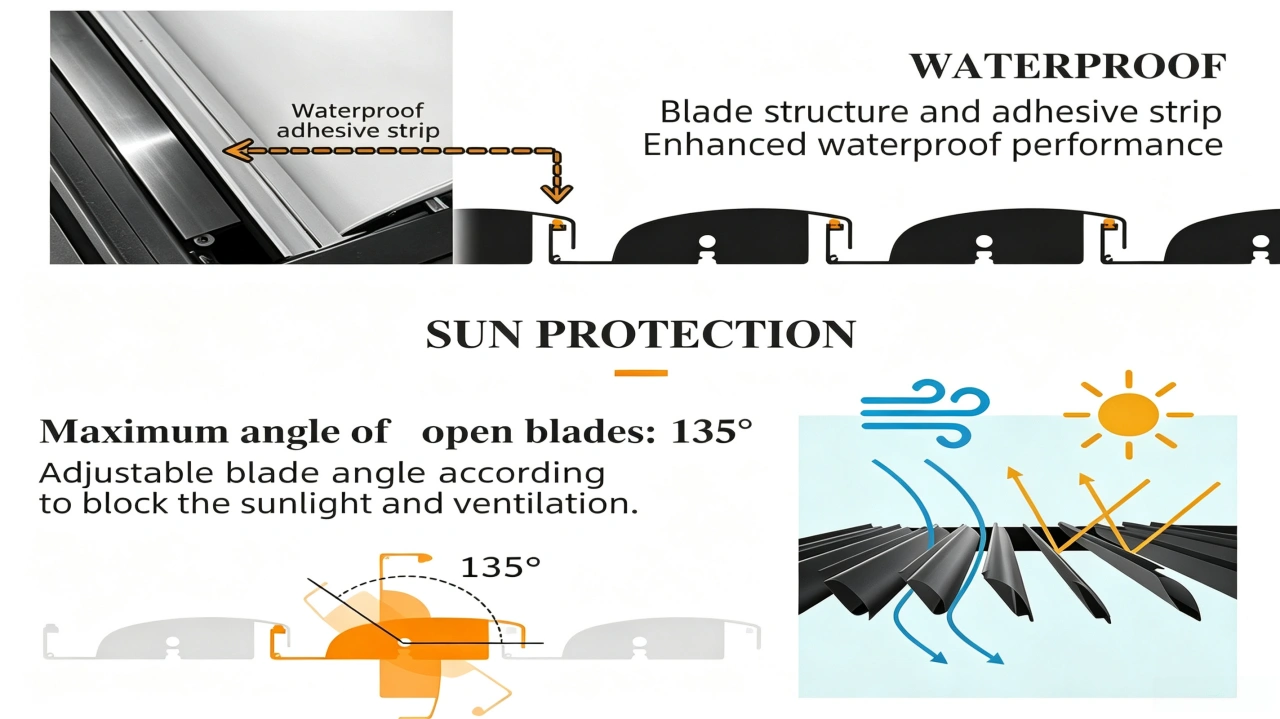

- Louvers can rotate up to Max 90° (max open angle up to 135° for bioclimatic function)
- Open louvers: welcome natural sunlight & fresh airflow
- Close louvers: achieve 100% waterproof rain shelter

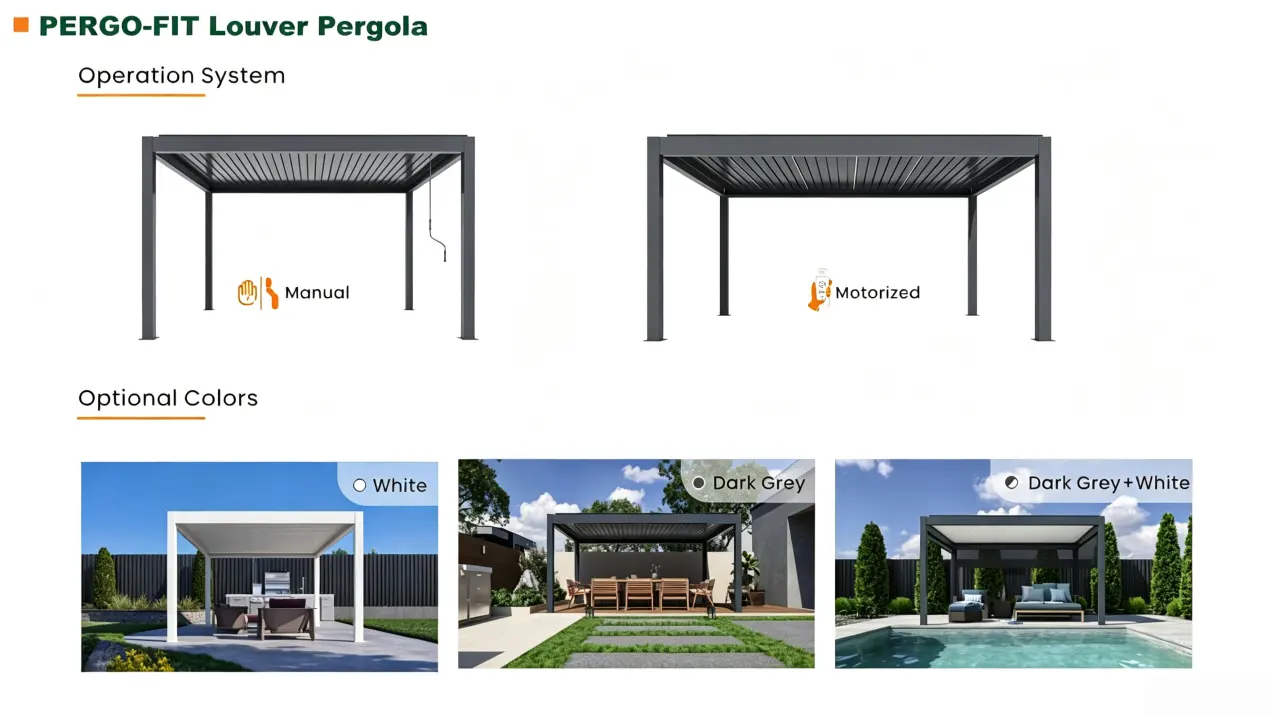

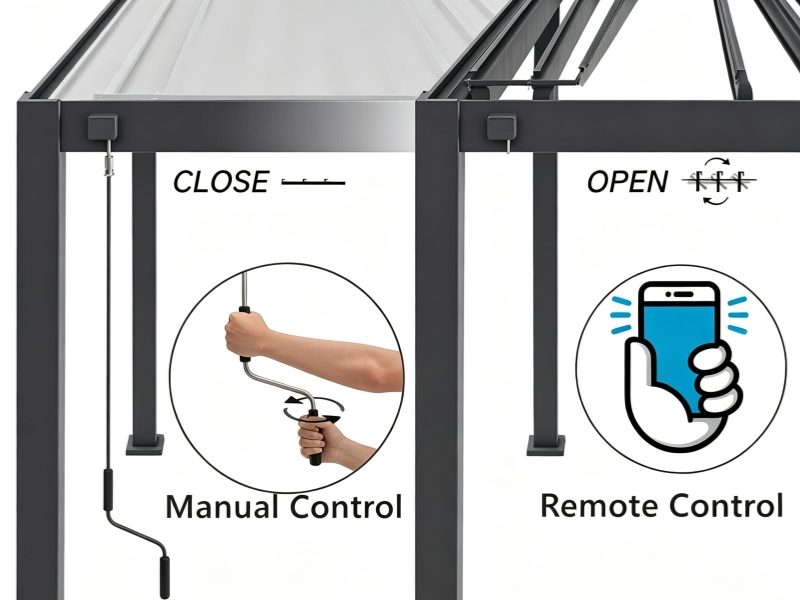

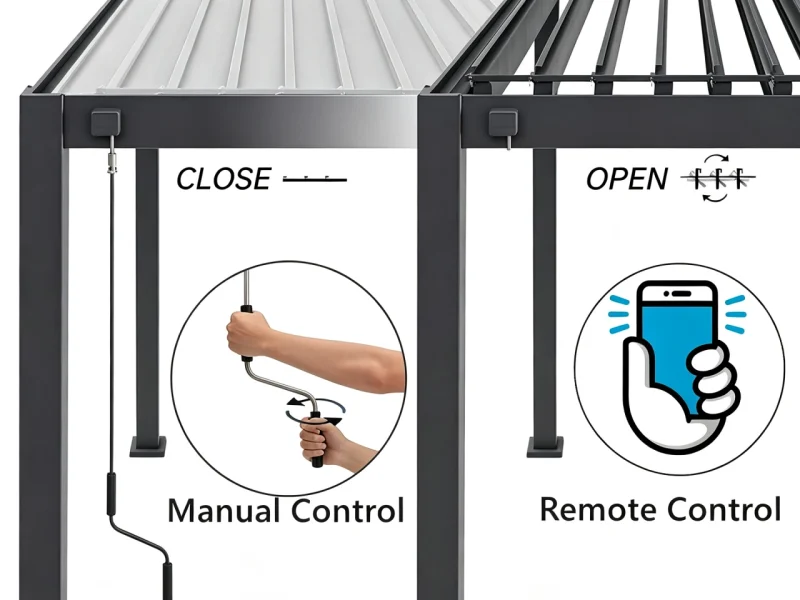

- Dual‑mode operation: Manual crank operation / Motorized remote control for easy angle adjustment
2.Hidden Integrated Gutter Drainage System
Built‑in hidden gutter system collects rainwater and guides water flow through columns for complete drainage (4 water outlets). No exposed messy pipes, keeps pergola appearance neat while solving outdoor rainy‑day waterproof needs.
3.Concealed Screw Design, Clean Streamline Look
Our innovative internal groove connection design joins columns and beams with hidden built‑in screws.
- No visible screws on outer surface, simple premium visual effect
- Higher structural stability
- Compared with competitors’ products with plenty of exposed external screws, PERGO‑FIT achieves better integrity and high‑end aesthetic for outdoor projects.
Complete Official Product Specifications
| Item | Detailed Parameter |
| Product Name | Bioclimatic Pergola Aluminium |
| Feature | Easily Assembled, Eco-Friendly, Eco Friendly, Renewable Sources, Waterproof |
| Size | 3×3 3×4 4×4 6×4 m |
| Frame Material | Aluminium |
| Louver Material | Aluminium |
| Alloy temper | 6063-T5/T6 pergola |
| Frame thickness | 1.5mm-2.0mm pergola |
| Roof panel thickness | 16 mm pergola |
| Color | ral 9001/9016/7016 matt pergola |
| Length | 3.06/4.06/5.06/6.06/7.06m pergola |
| Width | 2.5/3/3.5/4m pergola |
| Height | 2.5/3.5m pergola |
| Max Louver Open | 135° |
| Louver Control | Manual/ Motorized |
| Lighting | Integrated warm-toned LED&RGB perimeter lighting |
| Loading capacity | 85 kg/square meter pergola |
| Wind Resistance
(Beaufort scale) |
11 |
| Waterproof | Yes |
| Water Exit | 4 |
| Maintenance | Maintenance Free |
| Installation | Free Standing/Wall Mounted/Wall Hanging/Fit into Existing Structure |
| Warranty | 10 years |
| Single gross weight | 9.0 kg |
| Application Scenarios | This aluminum alloy motorized louvered pergola fits villas, patios, pool‑sides, rooftops, restaurants, hotels, resorts and coastal public spaces for outdoor leisure, dining and event use. |
Installation Types for Different Projects
1.Freestanding Bioclimatic Pergola
Four independent support columns. Best choice for private villa gardens, lawns, pool‑side areas. Most popular stock model.
2.Single‑Side Wall‑Attached Pergola
One side fixed to building exterior wall, save floor space. Ideal for back patios and terraces.
3.Two‑Sides Wall‑Mounted Pergola
Two edges attached to building structure. Perfect for balconies, restaurant outdoor zones and covered walkways.
4.Fit‑Into‑Existing‑Structure / Roof‑Only Kit
Louver roof assembly without support posts. For renovation projects if you already have existing supporting frames.
Optional Matching Accessories
Customise your outdoor living space with add‑on components:
- Motorized / Manual Retractable Side Screens: block wind, dust and boost privacy
- Integrated Warm‑toned & RGB Linear LED Strip Lights: night‑time ambient lighting
- Decorative Aluminium Fencing: matching‑color design for unified courtyard styling
Available colors (customizable)

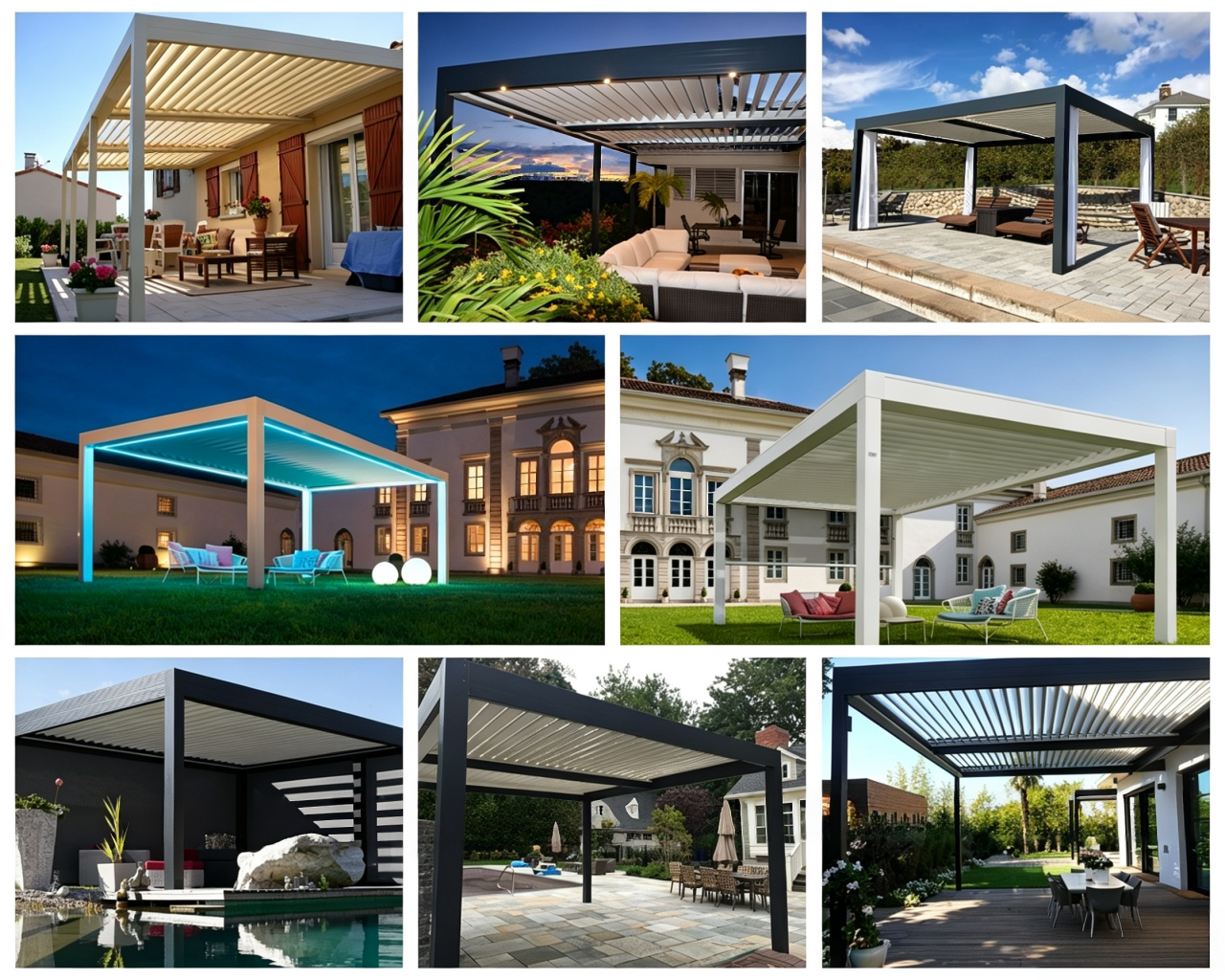

Application Scenarios
PERGO‑FIT bioclimatic adjustable pergola fits multiple commercial & residential projects:
- Private villas, backyard garden & patio
- Swimming pool side, rooftop terrace
- Outdoor dining area for restaurant, café
- Hotel, resort & coastal public leisure space
- Outdoor party, event & relaxation zone
We keep stock for all hot‑selling sizes with competitive pricing. If you need custom measurement and project proposal, please request our consultation servic

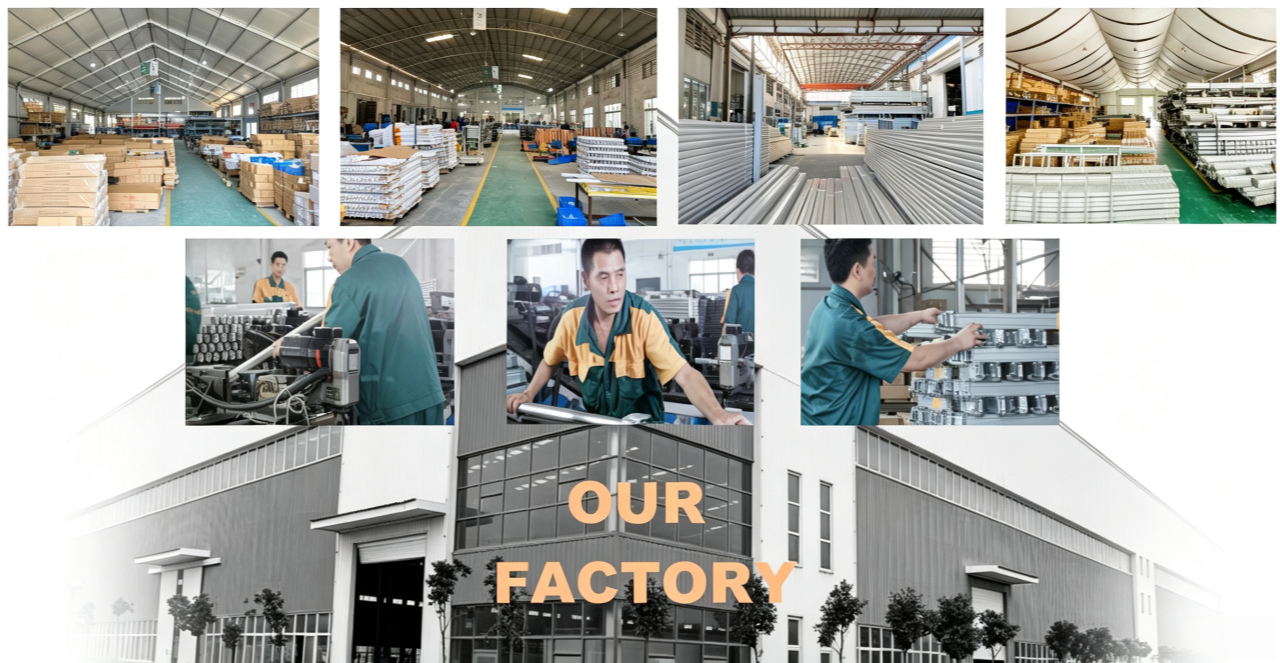

About Our Factory
SHENGCHENG is professional manufacturer for aluminium bioclimatic pergola and outdoor aluminium building products. We complete full production process from aluminium profile processing, precision cutting, assembling to quality inspection in‑house. Welcome OEM & custom dimension orders.
FAQ
Q1: Is this pergola fully waterproof when louvers are closed?
A: Yes. Closed louvers plus our hidden gutter drainage system achieve full waterproof performance for sudden rainfall.
Q2: Can I choose manual or motorized version?
A: Both options are available. Manual model uses hand crank; motorized version works with wireless remote controller.
Q3: Does the aluminium pergola need regular maintenance?
A: 6063‑T5/T6 aluminium alloy material is anti‑rust and maintenance‑free for outdoor use, even for coastal salty‑air environment. 10‑year warranty is provided.
Q4: What installation styles do you offer?
A: Freestanding, wall‑attached, two‑side wall mounted, standalone roof‑only solution; also can be adapted to fit your existing building structure.
